Computex 2016: Antec

Antec’s featured enclosures include the GX1200, the Trapeze (Cube design) and the Crown.
The GX1200 is a successful blend of stylish design and cooling performance – ideal for Gamers.

The middle tower case is with dimensions of 510 mm x 510 mm x 200 mm (L x W x H) and is compatible with mini-ITX / micro ATX / standard ATX/ E-ATX motherboards and supports up to 410 mm VGA cards. The case boasts two 3.5″/2.5” HDD drive cages, three 2.5″ SSD drive cages as well as seven PCI-Expansion slots.

The enclosure’s  cooling system features two pre-installed 120 mm front LED fans (customizable with seven colour options) and offers space for optional four 120 mm fans, one in the front, two on top, one exhaust fan the rear section of the GX1200 as well as one optional hard drive cage fan. The case provides enough space to mount a 240 mm radiator on top, a 360 mm radiator in the front and a 120 mm radiator in the rear. The included “Antec Magic Box” offer the option to adjust the fan speed at 6 stages and choose from seven different colours for the light feature at the bottom of the case. The gaming mid-tower is rounded up by HD audio jacks, two USB 3.0 ports and LED on/off buttons at the front of case.

c6ba414f-e41b-4b94-8213-7cbe4197aa51

The Antec Trapeze (Cube design) is a compact mini ITX case with uncompromised hardware compatibility. The frame is with dimensions of 355 mm x 250 mm x 459 mm (L x W x H) and delivers a unique leaned forward design with a hybrid structure made of 3 mm Aluminium and 0.8 mm cold-rolled steel. The enclosure features one 3.5″ HDD drive and two 2.5″ SDD bays. A total of four fan mounts with one pre-installed 1200 mm LED fan (customizable in seven colours) on the back of the case to ensure sufficient cooling. The Antec Trapeze is water-cooling ready with the option for a 240 mm radiator in the front and a 140 mm radiator in the rear. As another optical highlight, Trapeze offers an attractive panel & bottom lighting system in seven colours which can easily be adjusted on the top of the case. Last but not least, the case offers an innovative click system which enables to open and close the case in a quick and easy way. This thought-out case could serve as a conventional PC, gaming rig, or home theater device and media center, but is also well-suited for professional users.

a48bbeb1-1c72-4380-82c5-6e47047de546

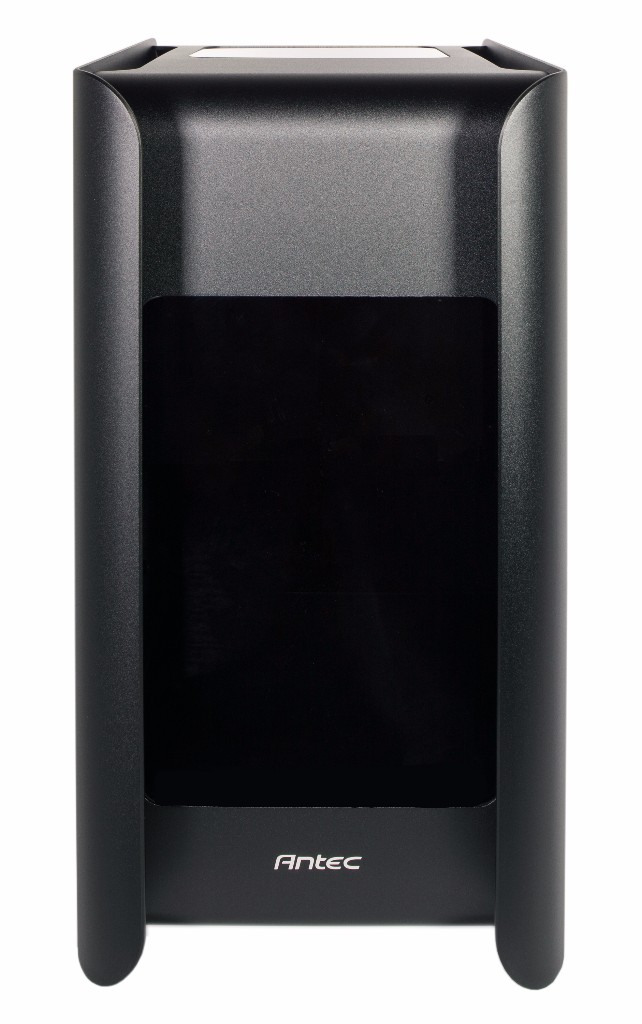

With the Antec Crown, the Californian manufactures presents a mini ITX case with is fully made of Aluminium including built-in windows in the front and on the side panels of the case and an excellent thermal concept. Its vertical duct design lets the user easily install the motherboard directly in the top section of the enclosure. The case measures 339 mm x 430.7 mm x 236 mm (L x W x H) and features two 3.5” HDD and four 2.5” SSD drive bays, two PCI expansion slots as well as one pre-installed 120 mm top LED fan. The Antec Crown supports VGA cards with a length of up to 330 mm and space for a water cooling solution in the top for a size of up to 128 mm.

Dobrin Krastev is the owner, reviewer and newsman of www.DVTests.com with more than 15 years' experience in personal computers, server and storage systems, UPS, peripheral devices and software. Passionate about testing and reviewing, AMD overclocking using AM3 990FXA and AMD FM2 A85X test systems and building modding projects.
