Computex 2016: Noctua

Just a couple of days ago we wrote about Cooler Master’s booth on Computex 2016 and now it’s Noctua’s turn. Here is what the guys from the Austrian company have to offer for this year:

  • Advanced heatsink fin structures and materials
  • Self-Stabilising Polymer (SSP) bearing for high-temperature industrialPPC fans
  • Monitoring modules for programmable logic controllers (PLCs)
  • Next generation A-series fans (200,140,120,80,70,60,50,40mm)
  • New anti-vibration mounts
  • chromax design heatsink covers
  • PWM fan controller
  • L-type120mm low profile cooler
  • 4U version of NH-U12DX i4
  • Next generation Xeon and Opteron cooler
  • AMD AM4upgrade kit
  • New industrial applications



Advanced heatsink fin structures and materials

  • Increasing heat transfer rate while keeping pressure drop and noise to a minimum
  • Common techniques such as louvre fins or longitudinal vortex generators (LVGs) are often ineffective or even counterproductive at low Reynolds numbers (such as on heatsinks with quiet low-speed fans)
  • Various approaches for improving heatsink fin performance – Offset split-fin design, Oblique groove patterns, Flow duct scoops, Protrusions, Aluminium-copper composite fin material

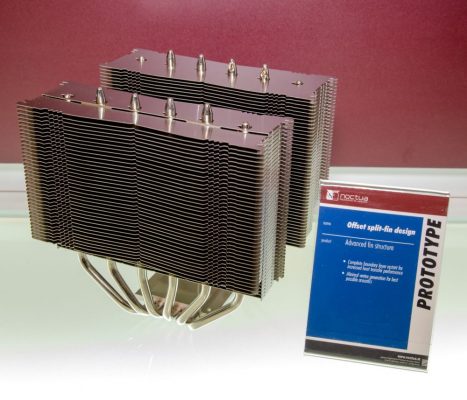

Offset split-fin design

split_fin

  • Separated primary and secondary fin
  • Complete boundary layer restart at offset secondary fin for increased heat transfer performance
  • Minimal vortex generation for best possible acoustics

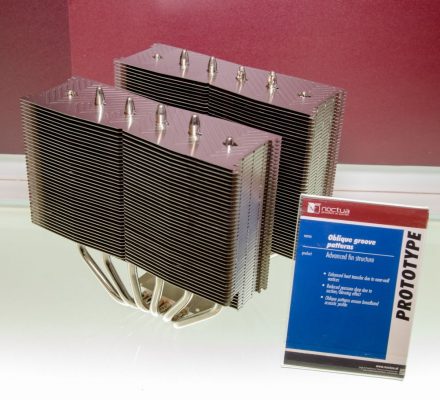

Oblique groove patterns

groove_patterns

  • Enhanced heat transfer due to near-wall vortices
  • Reduced pressure drop due to suction/blowing effect
  • Oblique patterns ensure broadband acoustic profile

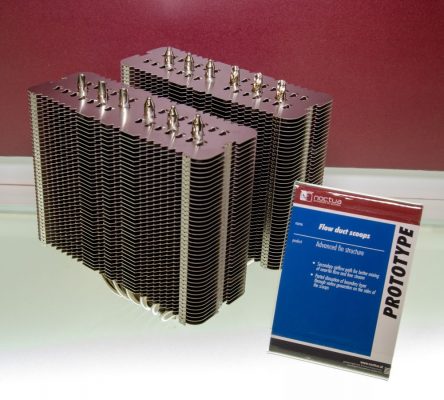

Flow duct scoops

flow_duct_scoops

  • Secondary airflow path through the flow duct scoops
  • Better mixing of near-fin flow and free stream
  • Partial disruption of boundary layer through vortex generation on the sides of the scoops

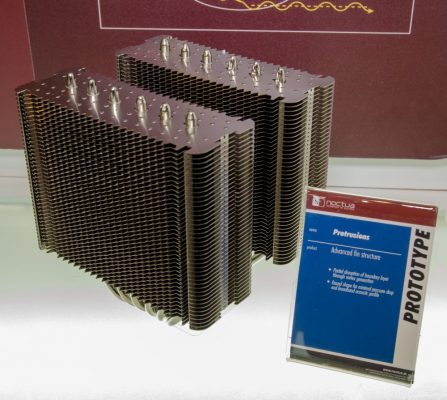

Protrusions

protrusions

  • Partial disruption of boundary layer through vortex generation
  • Turbulence supports mixing of near-fin flow and free stream
  • Round shape for minimal pressure drop and broadband acoustic profile

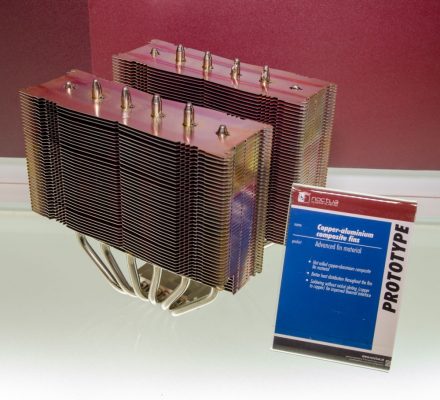

Copper-Aluminum composite fins

composite_fins

  • Hot rolled copper-aluminium composite fin material
  • Better heat-distribution throughout the fins
  • Soldering without nickel plating (copper to copper) for improved thermal interface

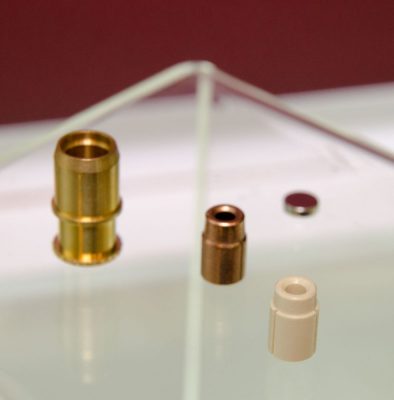

Self-Stabilising Polymer (SSP) bearing for high-temperature industrialPPC fans

ssp_bearing

  • Designed for high-temperature industrialPPC fans
  • Based on Noctua’s time-tested self-stabilising oil-pressure (SSO) bearing techology
  • Self-stabilising magnet on the rear side for reduced gyro effect and abrasion
  • Bearing body made from novel high-tech polymer compound
  • Solid lubricant particles contained within the polymer compound enable lubricant-free operation
  • Up to 200°C maximum operating temperature
  • Completely corrosion-free
  • High chemical resistance

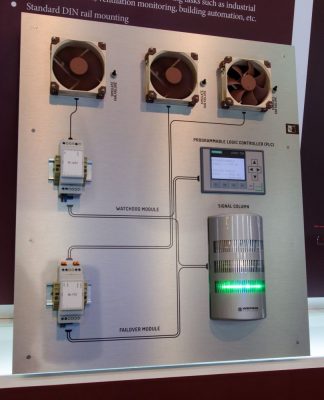

Monitoring modules for programmable logic controllers (PLCs)

plc_modules

  • Compatible with common programmable logic controllers (PLCs) from Siemens and other manufacturers such as B&R, Beckhoff, Bosch Rexroth, Eaton, Mitsubishi, Omron, Schneider, VIPA, etc.
  • Application example with Siemens LOGO! PLC and signal column
  • Watchdog module triggers alarm on fan failure (blocking, etc.)
  • Failover module speeds up secondary fans if primary fans fail (load transfer mode) or starts backup fans if primary fans fail (cold standby mode), triggers alarm if all fans fail
  • Up to 4 fans per module
  • Adjustable RPM threshold value
  • Alarm can be reset automatically or manually
  • Preprocessed, potential-free status signal output can also be used in proprietary control systems
  • Stand-alone mode for triggering signal lights or other devices without PLC
  • Ideal for use in basic control and monitoring tasks such as industrial machinery control, ventilation monitoring, building automation, etc.
  • To be available with 35mm DIN rail mounting, flange enclosure or open frame (PCB only)



Next generation A-series fans (200, 140, 120, 80, 70, 60, 50, 40mm)

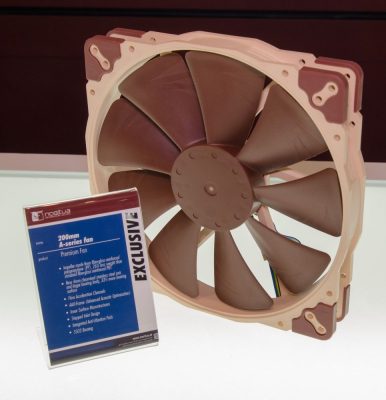

200mm

  • 200mm fan
  • Impeller made from fibre-glass reinforced polypropylene (PP), 26% less weight than standard fibre-glass reinforced PBT
  • New 4mm chromed stainless steel axis and larger SSO2 bearing body, 33% more bearing surface
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimization)
  • Inner Surface Micro-structures
  • Stepped Inlet Design
  • Integrated Anti-Vibration Pads

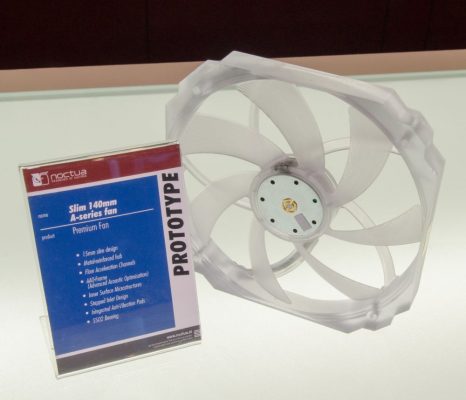

140mm_slim

  • 140mm fan
  • 15mm slim design
  • Metal-reinforced hub
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimisation)
  • Inner Surface Microstructures
  • Stepped Inlet Design
  • Integrated Anti-Vibration Pads
  • SSO2 Bearing

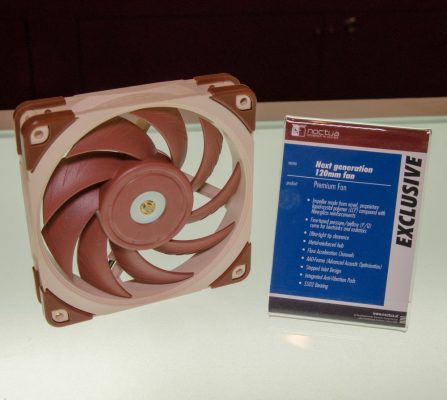

120mm_slim

  • 120mm fan
  • Impeller made from novel, proprietary liquid-crystal polymer (LCP) compound with fibre-glass reinforcements
  • Fine-tuned pressure/airflow (P/Q) curve for heatsinks and radiators
  • Ultra-tight tip clearance
  • Metal-reinforced hub
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimisation)
  • Stepped Inlet Design
  • Integrated Anti-Vibration Pads
  • SSO2 Bearing

120mm

  • 120mm fan
  • 15mm slim design
  • Metal-reinforced hub
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimisation)
  • Inner Surface Microstructures
  • Stepped Inlet Design
  • Integrated Anti-Vibration Pads
  • SSO2 Bearing

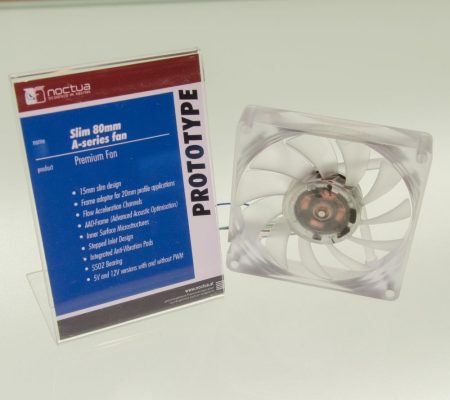

80mm

  • 80mm fan
  • 15mm slim design
  • Frame adaptor for 20mm profile applications
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimisation)
  • Inner Surface Microstructures
  • Stepped Inlet Design
  • Integrated Anti-Vibration Pads
  • SSO2 Bearing
  • 5V and 12V versions with and without PWM

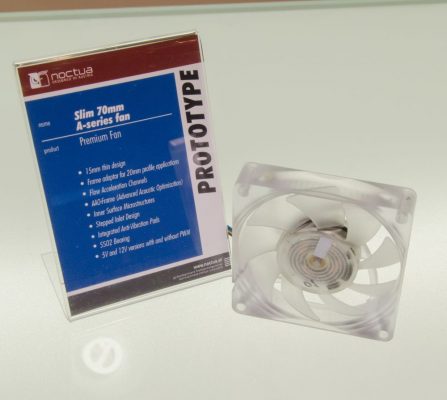

70mm

  • 70mm fan
  • 15mm slim design
  • Frame adaptor for 20mm profile applications
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimisation)
  • Inner Surface Microstructures
  • Stepped Inlet Design
  • Integrated Anti-Vibration Pads
  • SSO2 Bearing
  • 5V and 12V versions with and without PWM

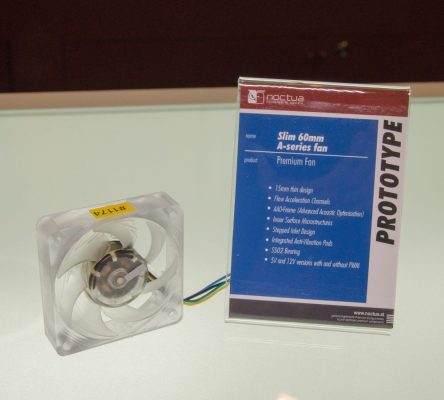

60mm

  • 60mm fan
  • 15mm slim design
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimisation)
  • Inner Surface Microstructures
  • Stepped Inlet Design
  • ntegrated Anti-Vibration Pads
  • SSO2 Bearing
  • 5V and 12V versions with and without PWM

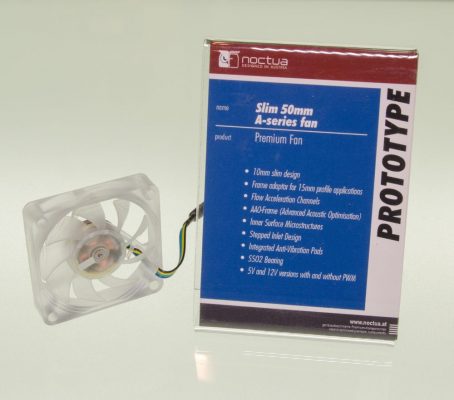

50mm

  • 50mm fan
  • 10mm slim design
  • Frame adaptor for 15mm profile applications
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimisation)
  • Inner Surface Microstructures
  • Stepped Inlet Design
  • Integrated Anti-Vibration Pads
  • SSO2 Bearing
  • 5V and 12V versions with and without PWM

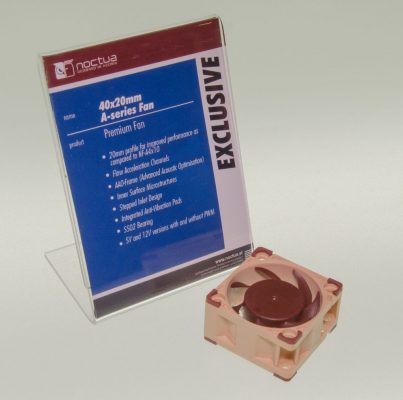

40mm

  • 40mm fan
  • 20mm profile for improved performance as compared to NF-A4x10
  • Flow Acceleration Channels
  • AAO-Frame (Advanced Acoustic Optimisation)
  • Inner Surface Microstructures
  • Stepped Inlet Design
  • Integrated Anti-Vibration Pads
  • SSO2 Bearing
  • 5V and 12V versions with and without PWM

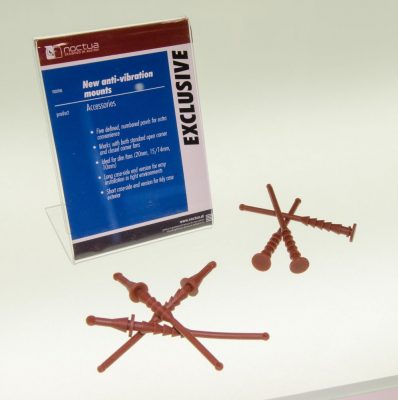

New anti-vibration mounts

anti_vibration_mounts

  • Five defined, numbered pawls for extra convenience
  • Works with both standard open corner and closed corner fans
  • Ideal for slim fans (20mm, 15/14mm, 10mm)
  • Long case-side end version for easy installation in tight environments
  • Short case-side end version for tidy case exterior

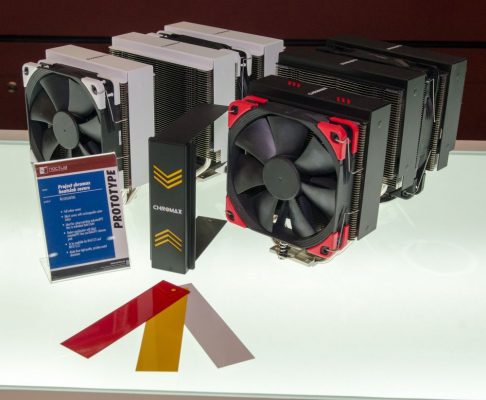

Chromax design heatsink covers

chromax_covers

  • Full colour covers
  • Black covers with exchangeable colour inlays
  • Ideal for colour-coordinating Noctua heatsinks and individual build themes
  • Perfect combination with black industrialPPC fans and NA-AVP1 chromax pads
  • To be available for NH-U12S and NH-D15(S)
  • Made from high-quality, powder-coated aluminium

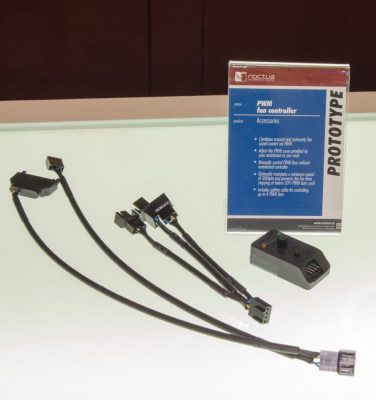

PWM fan controller

pwm_fan_comtroller

  • Combines manual and automatic fan speed control via PWM
  • Adjust the PWM curve provided by your mainboard as you wish
  • Manually control PWM fans without mainboard controller
  • Optionally maintains a minimum speed of 300rpm and prevents the
  • fan from stopping at below 20% PWM duty cycle
  • Includes splitter cable for controlling up to 3 PWM fans

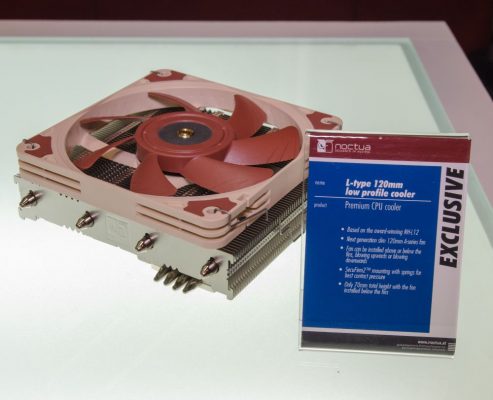

L-type120mm low profile cooler

l_type

  • Based on the award-winning NH-L12
  • Next generation slim 120mm A-series fan
  • Fan can be installed above or below the fins, blowing upwards or
  • blowing downwards
  • SecuFirm2™ mounting with springs for best contact pressure
  • Only 70mm total height with the fan installed below the fins

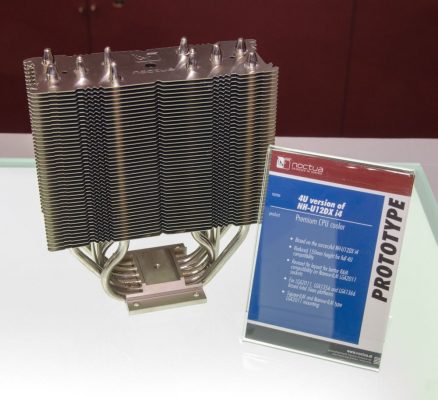

4U version of NH-U12DX i4

u12dx_4u

  • Based on the successful NH-U12DX i4
  • Reduced 150mm height for full 4U compatibility
  • Revised heatpipe and fin layout for better RAM compatibility on
  • Narrow-ILM LGA2011 sockets
  • For LGA2011, LGA1356 and LGA1366 based Intel Xeon platforms
  • Square-ILM and Narrow-ILM type LGA2011 mounting

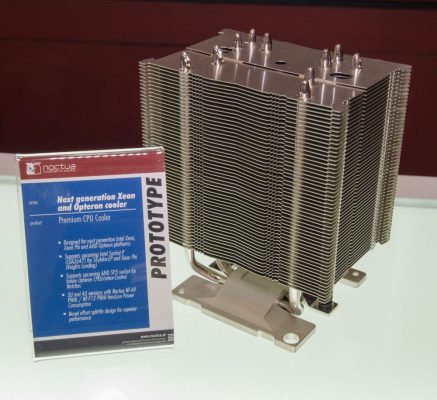

Next generation Xeon and Opteron cooler

xeon_opteron

  • Designed for next generation Intel Xeon, Xeon Phi and AMD Opteron platforms
  • Supports upcoming Intel Socket P (LGA3647) for Skylake-EP and Xeon Phi (Knights Landing)
  • Supports upcoming AMD SP3 socket for future Opteron CPUs
  • 3U and 4U versions with Noctua NF-A9 PWM / NF-F12 PWM fans
  • Novel offset split-fin design for superior performance

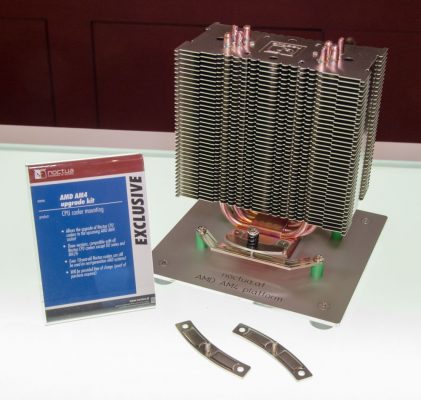

AMD AM4upgrade kit

am4

  • Allows the upgrade of Noctua CPU coolers to the upcoming AMD AM4 socket
  • Three versions, compatible with all Noctua CPU coolers except DO series and NH-L9i
  • Even 10-year-old Noctua coolers can still be used on next generation AMD systems!
  • Will be provided free of charge (proof of purchase required)



New industrial applications

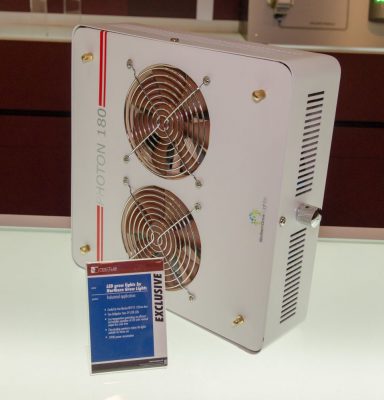

Industrial application example: LED grow lights

photon

  • Photon 180V by Northern Grow Lights
  • Cooled by two Noctua NF-P12 120mm fans
  • Two Bridgelux Vero 29 COB LEDs
  • Low temperature guarantees an efficient and reliable
  • operation of LED with minimal output loss over time
  • Class-leading quietness makes the lights suitable for
  • home use
  • 190W power consumption

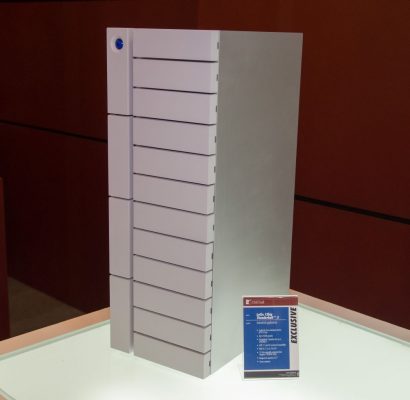

Industrial application example: storage solutions

12big

  • LaCie 12big Thunderbolt™ 3 by LaCie
  • Cooled by four redundant Noctua NF-B9 redux fans
  • Up to 96TB capacity
  • Thunderbolt 3 interface for up to 2600MB/s
  • USB 3.1 port for universal compatibility
  • RAID 0/1/5/6/50/60
  • 12 hot-swappable enterprise-class Seagate 7200RPM HDDs
  • Designed to operate 24/7
  • 5-year warranty





Nikola Milanov is reviewer and newsman at DVTests and has more than 6 years of experience in telecommunications. I'm really enthusiastic about the website and its development by sharing a user's point of view and experience with the products we test. We are honest and objective in all of the articles, the products get tested and reviewed thoroughly with no exception! Feel free to ask any questions in the comment section or use the emails in About us page!
