Cougar DUAL-X series

Basically the series offers one model with dimensions of 120 x 120 x 25mm and one model with 140 x 140 x 25mm and the only difference is the backlight colour.

The series consist of:

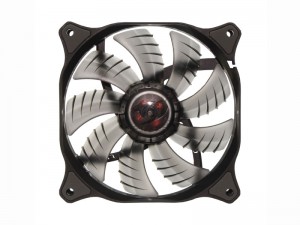

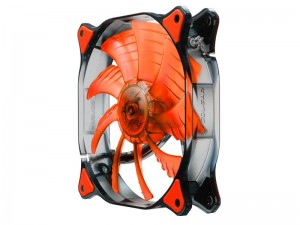

  1. DUAL-X RED LED 140 / DUAL-X RED LED 120

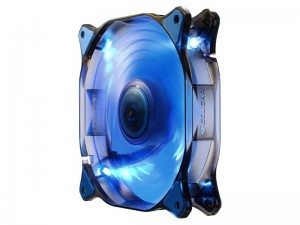

  2. DUAL-X BLUE LED 140 / DUAL-X BLUE LED 120

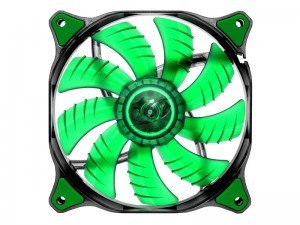

  3. DUAL-X GREEN LED 140 / DUAL-X GREEN LED 120
  4. DUAL-X BLACK HB 140 / DUAL-X BLACK HB 120
45w 45w2

The official technical details for the 120mm models are:

Dimensions:
120 x 120 x 25mm
Speed: 1200R.P.M
Air flow @ 12V (CFM, m3/h): 64.37 / 109.42
Air pressure @ 12V (mm H2O): 1.74
Noise: 16.6dB(A)
Bearing type: HB (Hydraulic-Bearing)
Connector: 3pin
Cable length: 450mm

fw_03 fw_02

The official technical details for the 140mm models are:
Dimensions: 140 x 140 x 25mm
Speed: 1000R.P.M
Air flow @ 12V (CFM, m3/h): 73.18 / 124.4

Air pressure @ 12V (mm H2O): 1.4
Noise: 18dB(A)
Bearing type: HB (Hydraulic-Bearing)
Connector: 3pin
Cable length: 450mm

All of the models are built according to the following technologies:

  • DUAL-LAYER RIGID BLADE DESIGN – Nine dual-layer rigid blades generate more powerful airflow, air pressure & decrease wind shear noise
  • COUGAR DIVERSION CLAWS DESIGN – Innovative COUGAR diversion claws to provide focused airflow & reduce noisy air turbulences
  • ANTI-VIBRATION PAD DESIGN – Reduce the vibrations efficiently & silent operation.
  • LED LIGHT VISUAL DESIGN – RED LED with transparent orange blade generates energetic visual effect
  • HYDRAULIC BEARING TECHNOLOGY – HB runs more smoothly with no friction, make it quietly & durability
  • TOOL-LESS FIXED PINS – Rubber fixed pins also reduces vibrations (fan run more quietly) and tool-less makes it easy to mount, with no tools required
