Deepcool ASSASSIN II

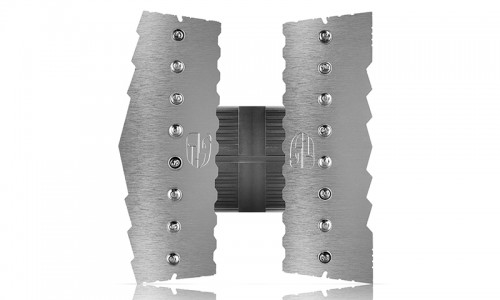

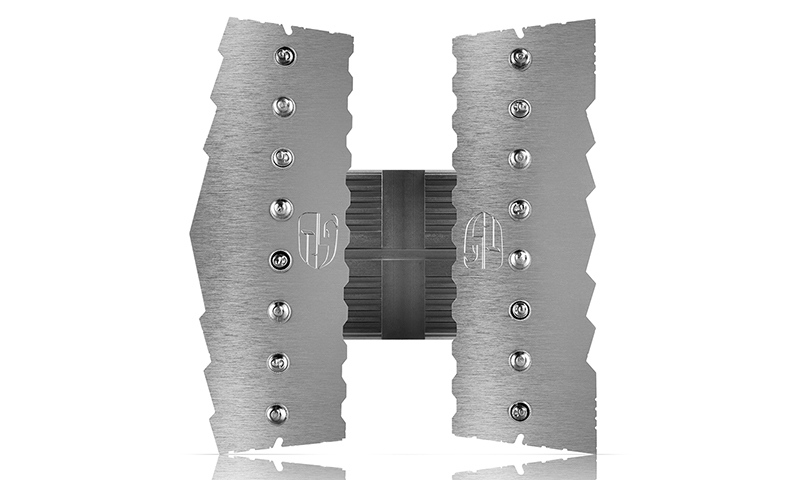

Deepcool ASSASSIN II is made as a structure of nickel coated copper contact plate and nickel plated aluminum fins forming the asymmetric twin-tower heatsink. The connection between the contact plate and the aluminum fins stack is done by 8 x Ø6mm U-shaped copper heatpipes. The overall dimensions of the cooler are 143 x 158 x 167 mm and weight of 1479g.

b24eba5f1f7c4bebbae912e1988aed0e

The cooler itself is compatible with all:

  1. LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1150/LGA775 sockets
  2. FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 sockets

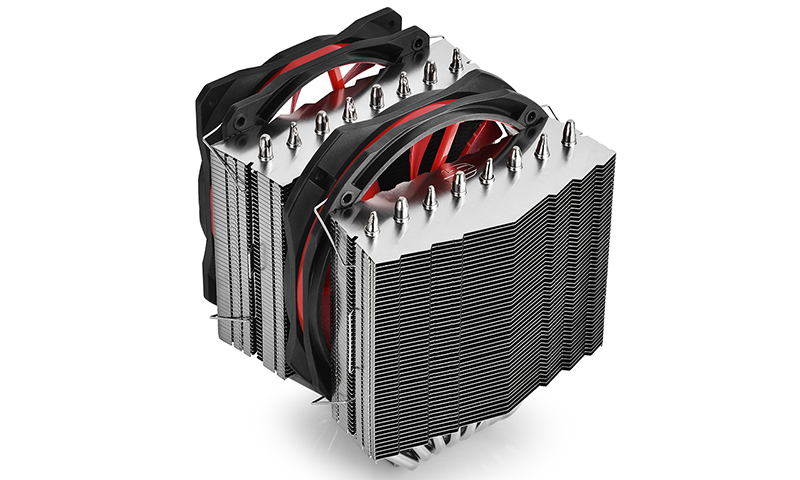

Deepcool ASSASSIN II is equipped with two fans doing the overall cooling process:

  1. 140 x140 x 26mm, which should be installed between the two towers working at 300±150~1200±10% revolutions per minute, providing airflow level of 70.08CFM at noise level of 17.8~26.5dB(A). The fan is equipped with Fluid Dynamic Bearing and is made to operate in 10.8~13.2VDC range.
  2. 120 x120 x 26 mm, which should be installed on the front tower working at 300±150~1400±10% revolutions per minute, providing airflow level of 68.06CFM at noise level of 17.8~27.3dB(A). The fan is equipped with Fluid Dynamic Bearing and is made to operate in 10.8~13.2VDC range.

4389f516b08845f3ac14603e395bbac9

Both of the fans are made with rubber cover on the frame to reduce the vibrations if there are any.

The cooler looks pretty massive and at the same time very stylish.
