NZXT Phantom 630

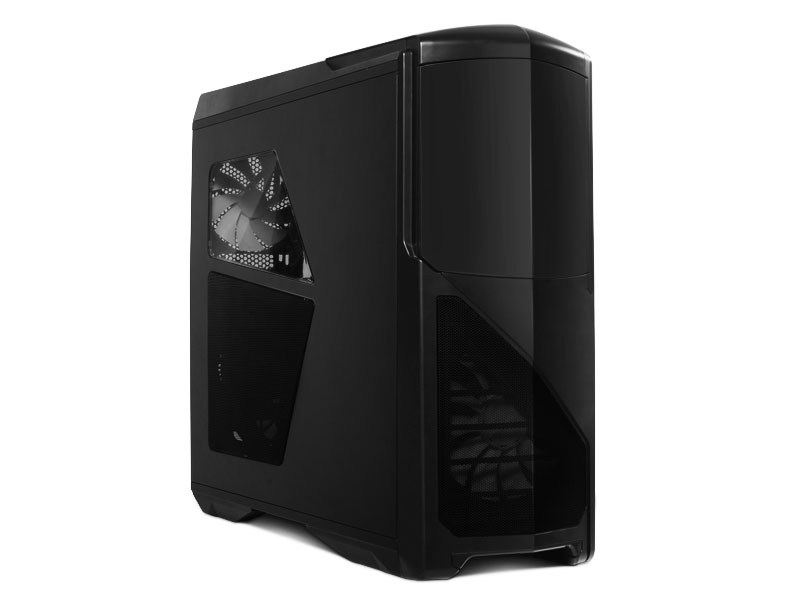

NZXT Phantom 630 is made of steel chassis and plastic parts with dimensions of 245mm(W) x 627mm(H) x600mm(D) with overall weight of 12.3kg. According to the manufacturer the model is suitable for motherboards with dimensions according to the standards ATX, micro ATX and XL-ATX.

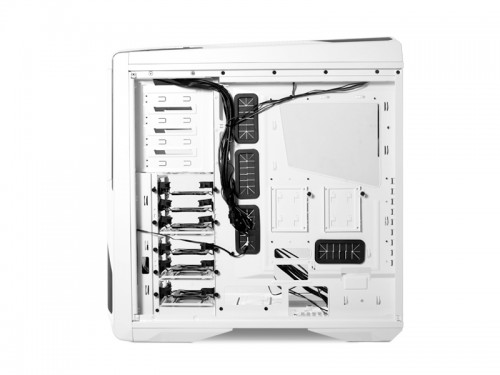

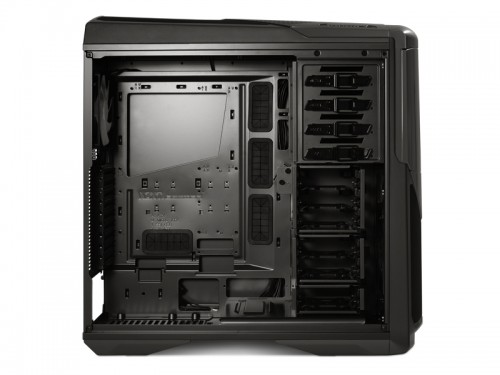

NZXT Phantom 630 can hold up to 4 x external 5,25″ bays plus 6 x 3.5″ bays inside 3 HDD brackets all fully modular and 2 x 2.5″ behind the motherboard.

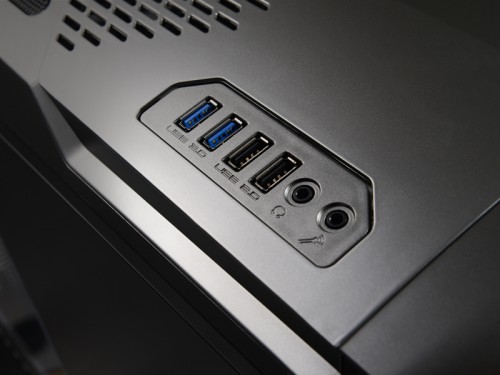

Apart from that all of the I/O ports are based on the front-left side of the top panel and offers:

  • 1 x Audio/Mic
  • 2 x USB 2.0 and 2 x USB 3.0
  • SD Card reader with SDHC and SDXC support
  • I/O panel LEDs on and off
  • Single channel 30W fan controller with 3 steps

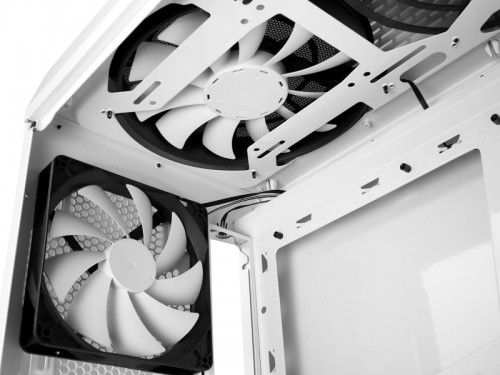

The cooling of the case and future installed parts inside of it is done by:

  1. front panel: 1 x 200mm(included) or 2 x 140 or 2 x 120mm fans
  2. top panel: 2 x 200mm(1 included) or 2 x 140 or 3 x 120mm fans
  3. side panel: 1 x 200mm(included) fan
  4. rear panel: 1 x140(included) or 120mm fan
  5. bottom panel: 2 x 120 or 2 x 140mm fans
  6. HDD: 1 x 140mm or 1 x 120mm fans
