Silverstone Primera Series PM02

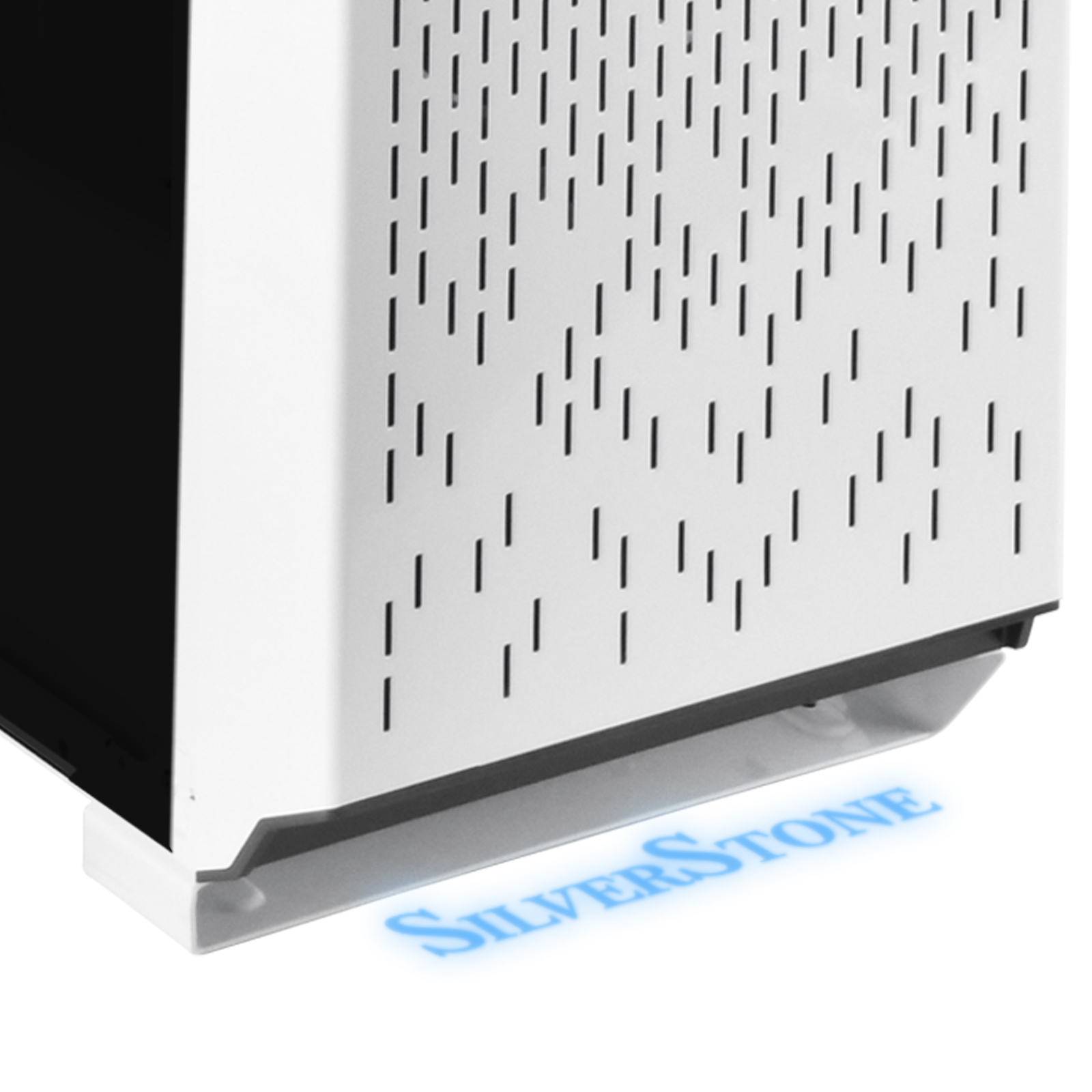

Silverstone Primera Series PM02 is a relatively new addition to the Primera series of cases from Silverstone. It’s coming in two color options (black and white), both featuring a very nice tempered glass side panel. While a red accent color is present for the black version, a nice cool blue LED light is responsible for the fresh look of the white color version of PM02. The LED in question is emitting the company logo on the floor, making for a really distinctive look and a very nice touch to the overall design.

Silverstone PM02 is made predominantly out of steel and glass. In other words, PM02 is a very robust and premium-feeling case, expected from a company like Silverstone. In terms of physical dimensions, the PM02 comes in at 220mm (W) x 491mm (H) x 456mm (D) or 49.3 liters of volume.

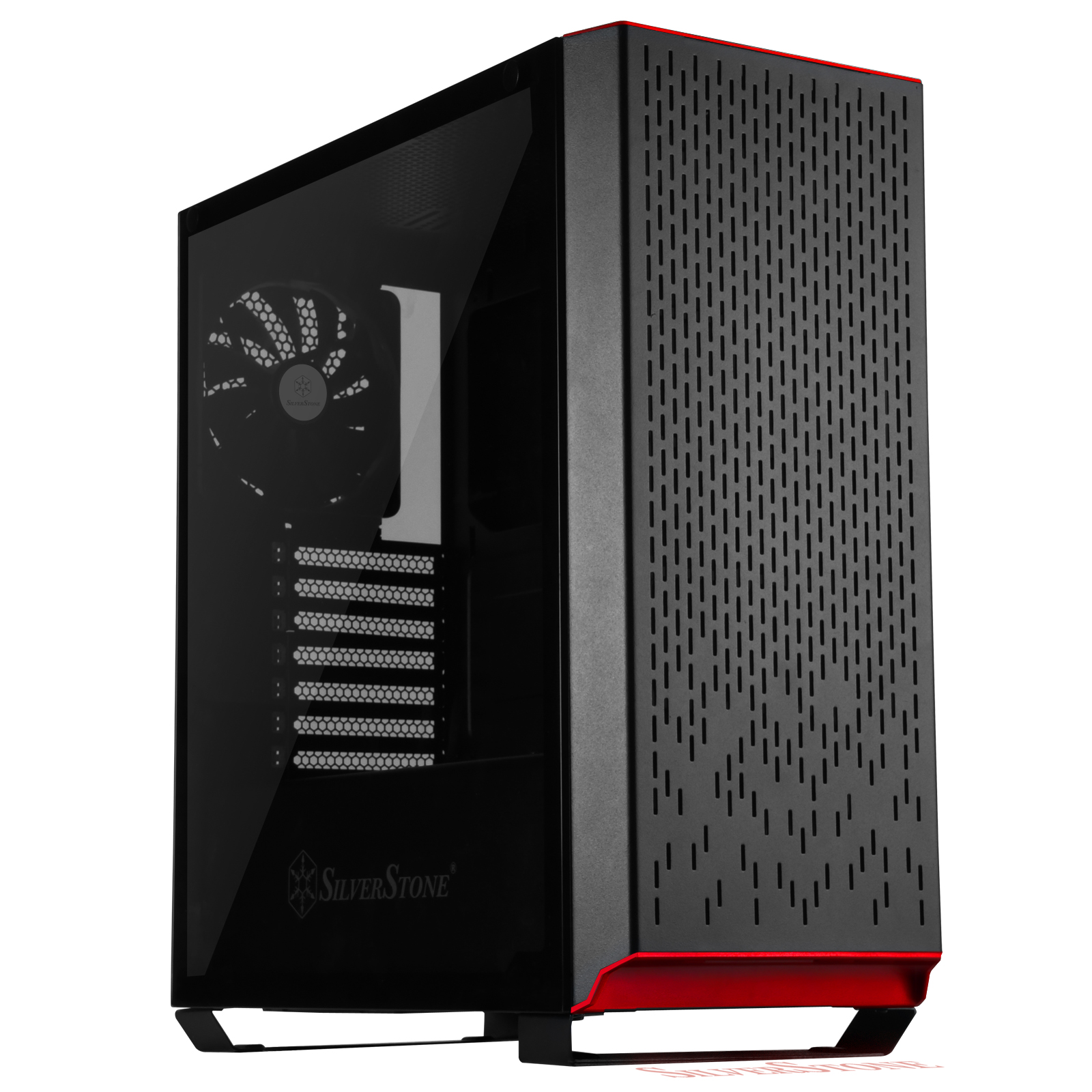

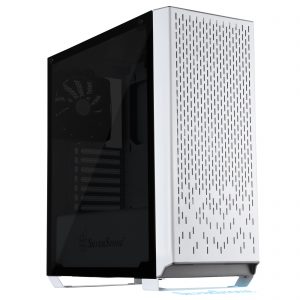

Black PM02 White PM02

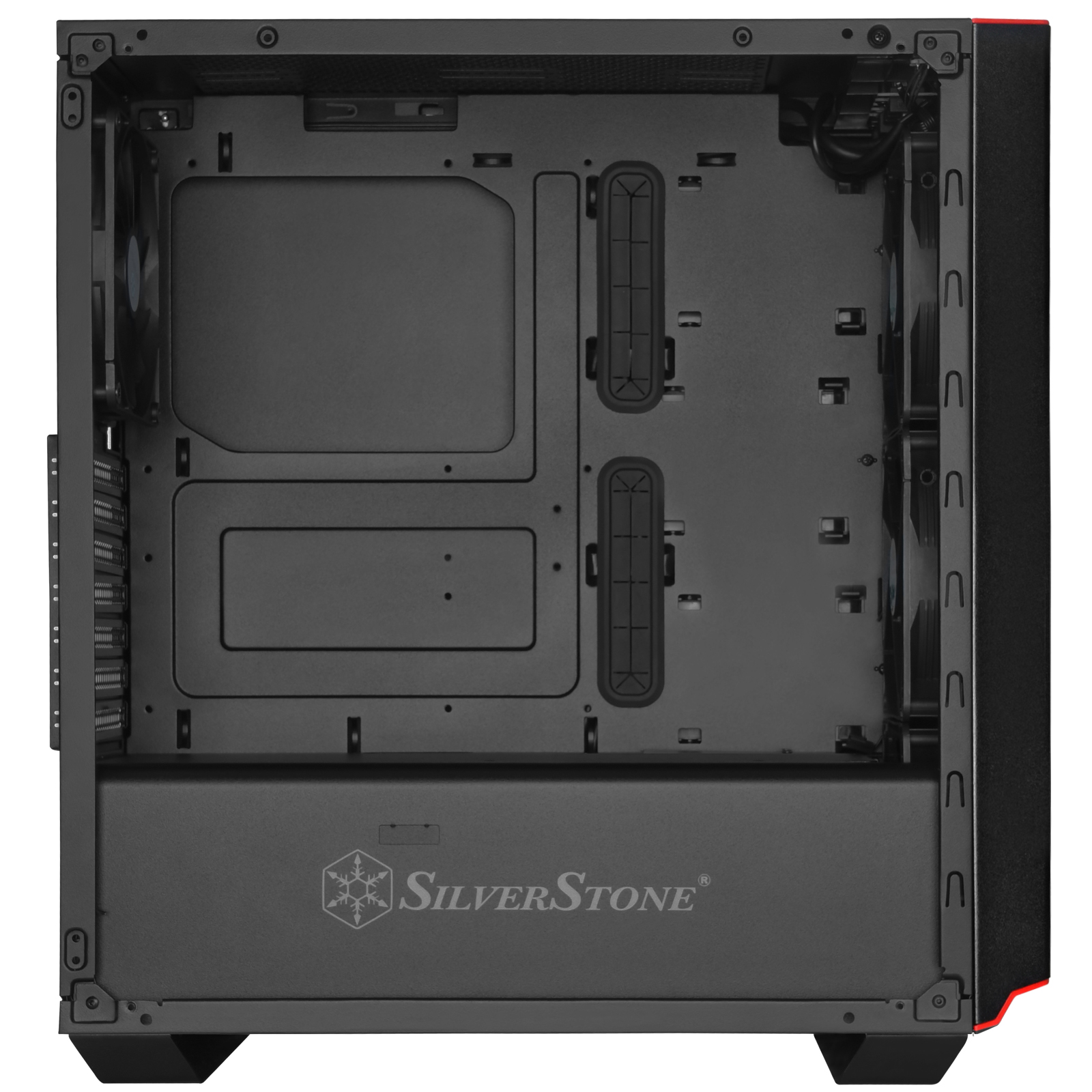

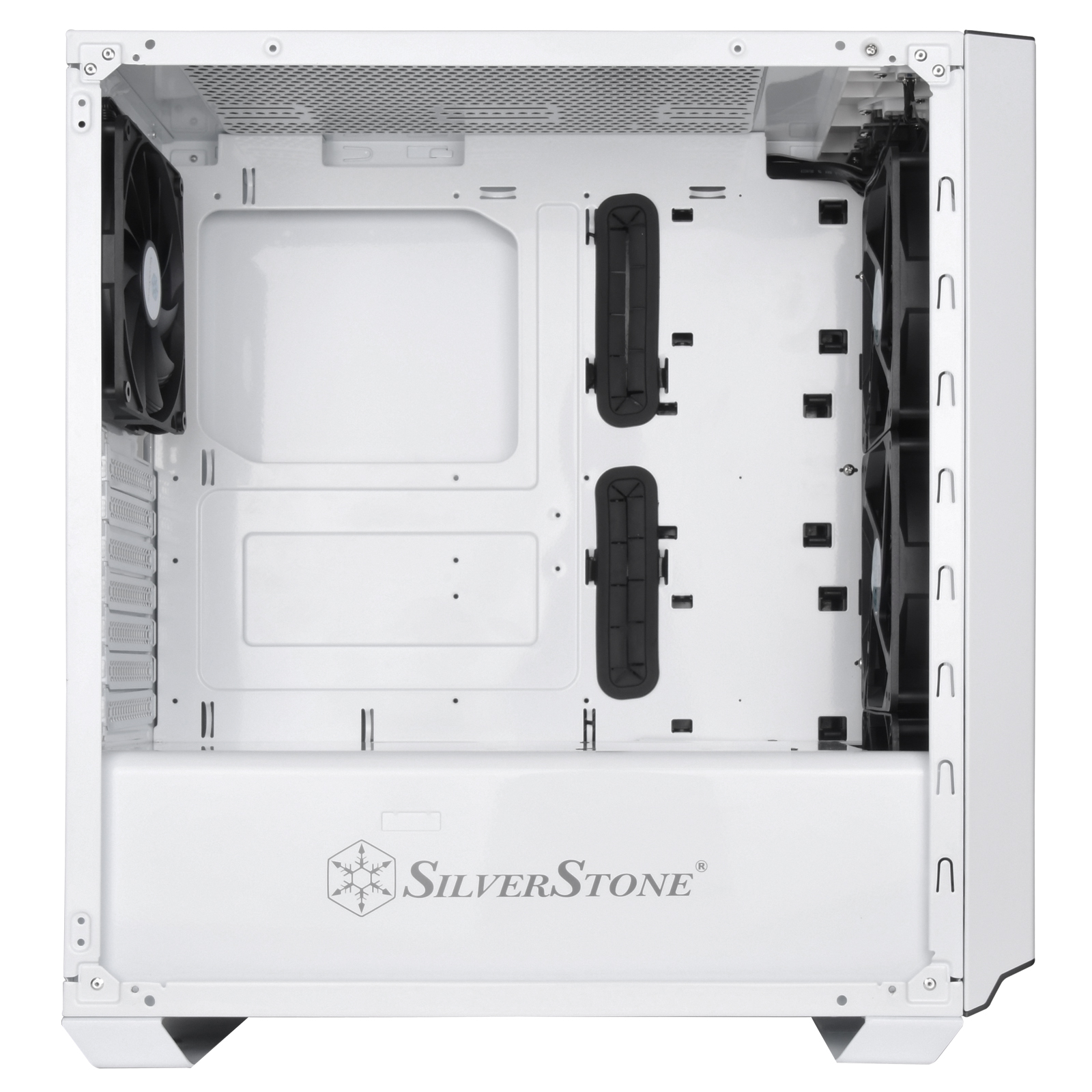

Internally, PM02 can accommodate motherboards with ATX form factor ( up to 12″ x 11″) and Micro-ATX ones as well. When it comes to storage, this unique looking Silverstone case can fit 3 x 3.5″ drives  (backward compatible with 2.5″) and 3 x 2.5″ drives, making for a total of 6 storage drive bays. To make things easy and neat the Silverstone included tool-less mounts. Furthermore, plenty of room is available for expansion in the face of 7 PCI-e slots and room for lengthy GPUs at a maximum of 415mm of length. Additionally, 167mm is the maximum CPU cooler height, so high end cooler fit will not be an issue.

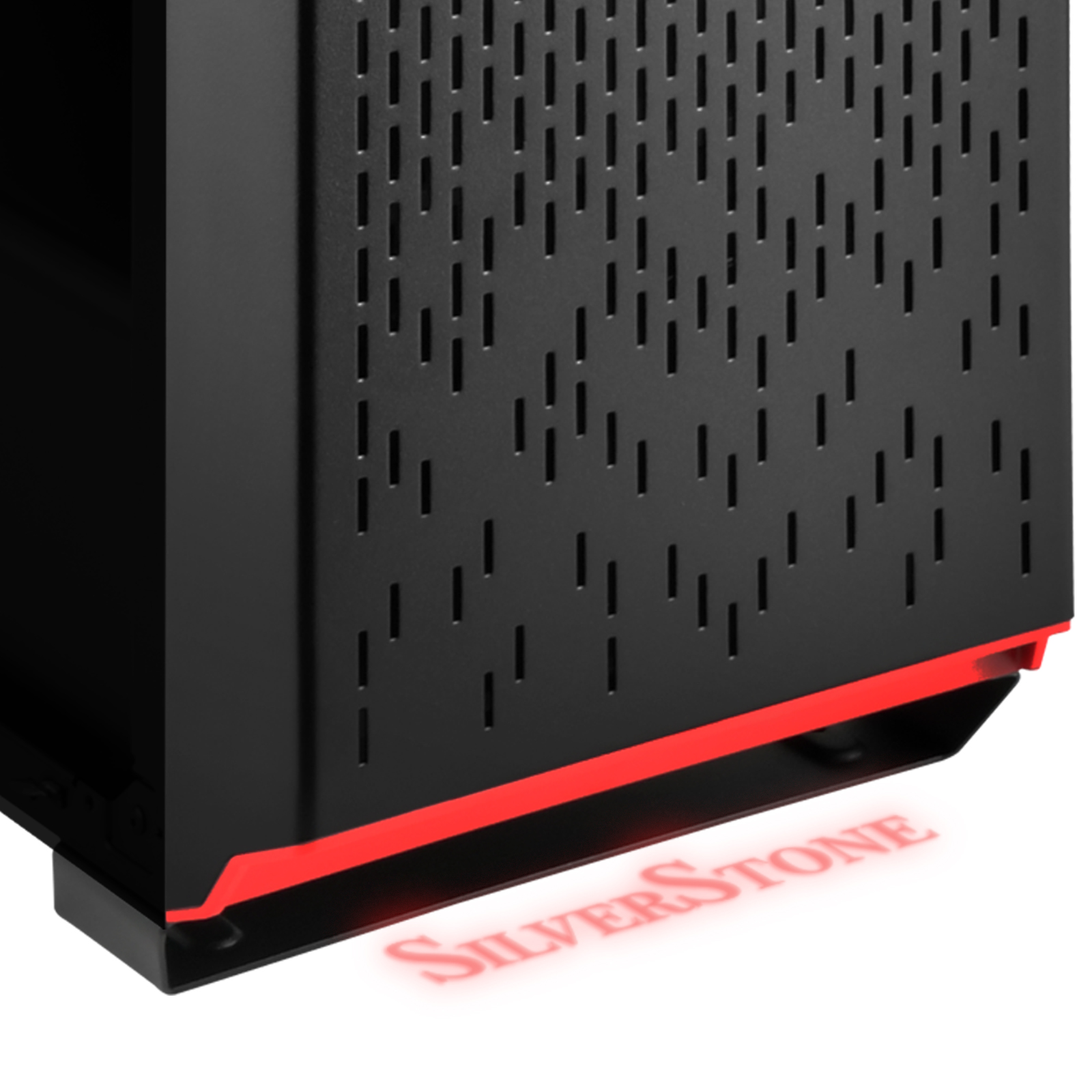

PM02 with red LED PM02 with blue LED



Another feature worth mentioning is the presence of a PSU shroud, hiding all the cables away and making room for a truly captivating internal look of the hardware. As usual, we have the option of using the smart backside cable routing design with velcro straps.

Another great feature is the cooling capability and options coming with PM02, both air and water radiator options are supported.

Front: 3 x 120 / 140mm fan slot (includes 3 x 140mm PWM fan)
Rear: 1 x 120mm / 140mm fan slot (includes 1 x 140mm PWM fan)
Top: 2 x 120mm / 140mm fan slot

In the same extensive fashion, here is the water cooling radiators we have support for in PM02:

Front: 1 x 120mm ; 1 x 240mm / 280mm / 360mm
Rear: 1 x 120mm / 140mm
Top: 2 x 120mm ; 1 x 240mm / 280mm

Additionally, to top things off, Silverstone really took care of the different connectivity options. The front I/O port is equipped with 3 x USB 3.0 Type A, USB 3.1 Gen1 and Type-C x 1. Next to these ports are the HD audio jacks.
