The new 140mm models feature Noctua’s novel AAO frames as well as the series’ signature Flow Acceleration Channels for reduced boundary layer separation and improved aerodynamic efficiency. Reference class SSO2 bearing and 6 years manufacturer’s warranty make the NF-A15 and NF-A14 a stand-out choice for all noise-sensitive 140mm applications.
The NF-A15 is a 140mm fan with a round frame, which features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on today’s high-end CPU coolers. The model features Noctua’s custom designed PWM IC for fully automatic speed control and comes with Low-Noise Adaptor for all noise-sensitive users.
The NF-A14 FLX and ULN are 140mm fans with a square frame with 140mm mounting holes (124.5mm spacing). According to Noctua these fans are ideal for use on watercooling radiators or as an upgrade for 140mm case fans. The FLX version provides 1200/1050/900rpm speed settings via the supplied Low-Noise Adaptors in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. The ULN version provides super-slow 800/650rpm speed settings for ultra-low-noise applications.

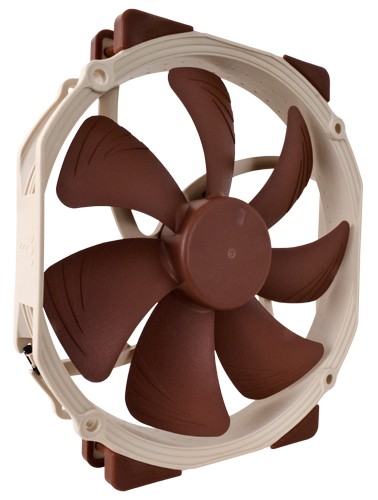

Noctua NF-A15 PWM
Specifications:
Size 140x150x25 mm
Connector 4-pin PWM
Bearing SSO2
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%) 1200 RPM
Rotational Speed with L.N.A. (+/- 10%) 900 RPM
Min. Rotational Speed (PWM) 300 RPM
Airflow 115,5 m³/h
Airflow with L.N.A. 88,7 m³/h
Acoustical Noise 19,2 dB(A)
Acoustical Noise with L.N.A. 13,8 dB(A)
Static Pressure 1,51 mm H2O
Static Pressure with L.N.A. 0,89 mm H2O
Max. Input Power 0,96 W
Max. Input Current 0,8 A
Voltage 12 V
MTBF > 150.000 h

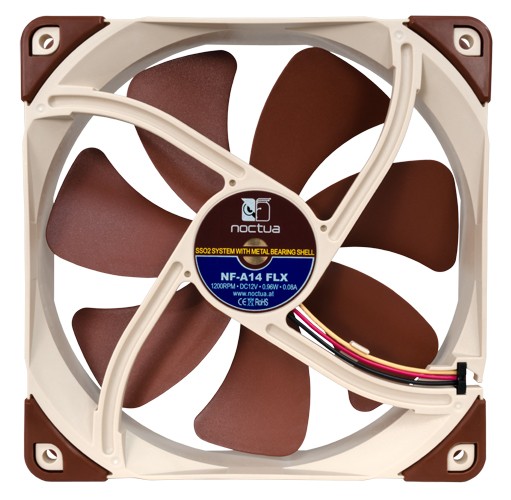

Noctua NF-A14 FLX
Specifications:
Size 140x140x25 mm
Connector 3-pin
Bearing SSO2
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%) 1200 RPM
Rotational Speed with L.N.A. (+/- 10%) 1050 RPM
Rotational Speed with U.L.N.A. (+/- 10%) 900 RPM
Airflow 115,5 m³/h
Airflow with L.N.A. 101,9 m³/h
Airflow with U.L.N.A. 88,7 m³/h
Acoustical Noise 19,2 dB(A)
Acoustical Noise with L.N.A. 16,4 dB(A)
Acoustical Noise with U.L.N.A. 13,8 dB(A)
Static Pressure 1,51 mm H2O
Static Pressure with L.N.A. 1,18 mm H2O
Static Pressure with U.L.N.A. 0,89 mm H2O
Max. Input Power 0,96 W
Max. Input Current 0,08 A
Voltage 12 V
MTBF > 150.000 h

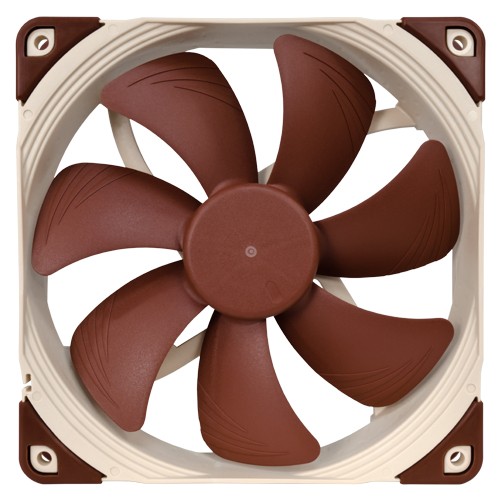

Noctua NF-A14 ULN
Specifications:
Size 140x140x25 mm
Connector 3-pin
Bearing SSO2
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%) 800 RPM
Rotational Speed with L.N.A. (+/- 10%) 650 RPM
Airflow 79,8 m³/h
Airflow with L.N.A. 66,4 m³/h
Acoustical Noise 11,9 dB(A)
Acoustical Noise with L.N.A. 9,1 dB(A)
Static Pressure 0,69 mm H2O
Static Pressure with L.N.A. 0,42 mm H2O
Max. Input Power 0,48 W
Max. Input Current 0,04 A
Voltage 12 V
MTBF > 150.000 h
The new fans will be available immediately at recommended retail prices of EUR 21.90 / USD 24.90.
For more details please visit Noctua official web page.
