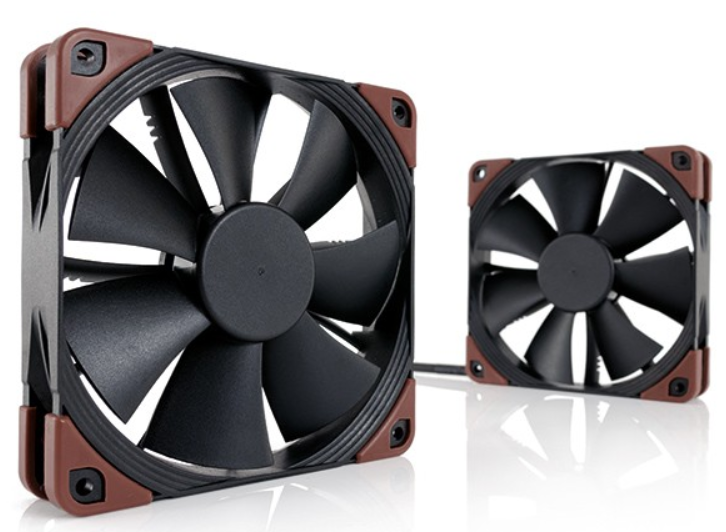

In the enterprise niche where performance is vital, there hasn’t been much word about how this is achieved and what is important there. Noctua has released 24 volt versions of the famous IndustrialPPC fans. PPC stands for Protected Performance Cooling and those fans have a number of features that enable them to be at the top of this segment. Wide input range version of Noctua’s NE-FD2 motor driver IC is used in order to support 24V-based industrial applications.
All of the fans in the line up are IP67 certified and offer outstanding durability, longevity and performance in their class.
[wpsm_list type=”arrow”]

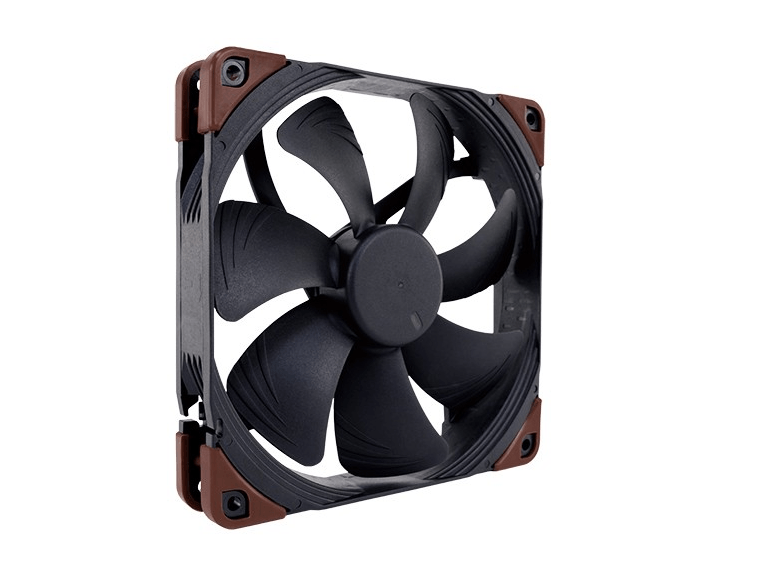

- NF-A14 industrialPPC-24V-2000 IP67 PWM has square frame with dimensions of 140x140x25mm, maximum rotational speed of 2000 RPM, 31,5 dB/A of noise level and 182,5 m³/h of airflow. Air presure is 4,18 mm H2O . Power comes trough 4-Pin PWM connector.
- NF-A14 industrialPPC-24V-3000 IP67 PWM has square frame with dimensions of 140x140x25mm, maximum rotational speed of 3000 RPM, 41,3 dB/A of noise level and 269,3 m³/h of airflow. Air presure is 10,52 mm H2O . Power comes trough 4-Pin PWM connector.
- NF-F12 industrialPPC-24V-2000 IP67 PWM has square frame with dimensions of 120x120x25mm, maximum rotational speed of 2000 RPM, 29,7 dB/A of noise level and 121,8 m³/h of airflow. Air presure is 3,94 mm H2O . Power comes trough 4-Pin PWM connector.
- NF-F12 industrialPPC-24V-3000 IP67 PWM has square frame with dimensions of 120x120x25mm, maximum rotational speed of 3000 RPM, 43,5 dB/A of noise level and 186,7 m³/h of airflow. Air presure is 7,63 mm H2O . Power comes trough 4-Pin PWM connector.
[/wpsm_list]
The fan series come with the standard for Noctua’s industrialPPC color scheme of black and dark brown for the rubberized accessories. It comes to be said that those fans use the SSO2 bearing type, ensuring longevitiy and MTBF of over 150.000hrs.
As performance is of a high demand those fans are designed with the idea in mind to perform at the very best and some of the features they offer are: water and dust protection, Fibre-glass reinforced polyamide construction that allows the fan to withstand temperatures of up to 140°C.
Focused Flow™ Frame for directional airflow and optimized performance. Varying Angular Distance and Vortex Control Notches allow the noise levels of the fan to be spread over a broader frequency spectrum for that noise to be less irritating to the human ear.
Heptaperf™ Impeller using seven optimally designed blades to achieve good balance between noise and performance. Noctua’s AAO (Advanced Acoustic Optimisation) is used as well to provide insulation from the material the fan is mounted to and reduce noise and vibration.
Stepped Inlet Design and Inner Surface Microstructures are used to optimize airflow, air pressure and noise levels.
Last but not least there is 6 year warranty to back up the fans, making these fans a reliable investment for your needs.
