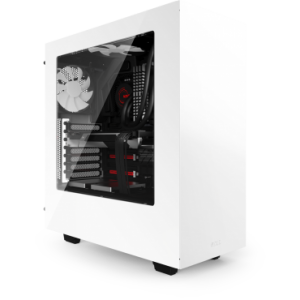

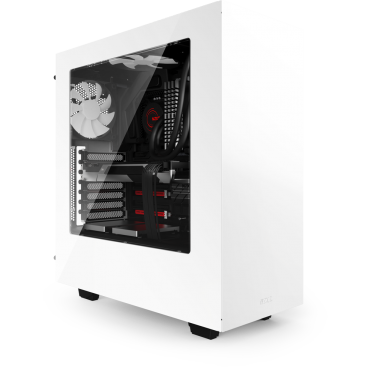

S340 chassis is a compact size, yet providing sufficient interior space case that measures 200mm x 445mm x 432mm and weighs 7.05 kg. It’s constructed mainly from steel with little plastic involved and that really stands out design-wise. The case is all round flat and smooth, with no visible mesh or grills. NZXT kept it simple and productive while designing their new case. Of course, an added acrylic window on the side panel is something you can’t miss, so S340 has one that extends almost through the entire panel – it does look amazing. Black and white versions are available for purchase and the white version comes also with black finish on the interior.

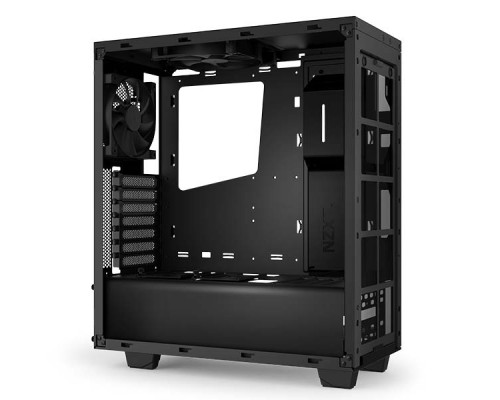

The interior is also very simple but has lots of features for a case this size – inside S340 you can install motherboards like Mini-ITX, MicroATX and standard ATX and utilize all seven expansion slots that are available. ODD is unavailable actually so more room is left for a water cooling build and a total of 5 drive bays are present – 3 can fit 3.5″ bays and 2 are designed for a 2.5″ device. The PSU remains hidden under a specially designed plate for improved looks and to give the build an overall neat layout. Dust filters are present on the front and under the PSU.
NZXT S340 COOLING
The guys from NZXT designed the case to be able to meet the requirements for sufficient cooling and the S340 is a capable case, indeed. It can house up to four fans and two of them are pre-installed – both are 120mm FN V2 fans.
- Front: 2x 140/2x120mm
- Top: 1x 140/120mm (1 x 120mm FN V2 Fans Included)
- Rear: 1x 120mm (1 x 120mm FN V2 Fan Included)
Additionally the case can be equipped with water cooling radiators for improved cooling;
- Front 2 x 140 or 2 x 120mm
- Rear 1 x 120mm
The spacious interior of the chassis supports CPU coolers with maximum height of 161 mm, GPU’s up to 364 mm (when a radiator is not installed at the front) and a minimum of 17mm of cable management space. On the top I/O panel there are two USB 3.0 ports and 3.5 mm jacks for Microphone and Audio.
