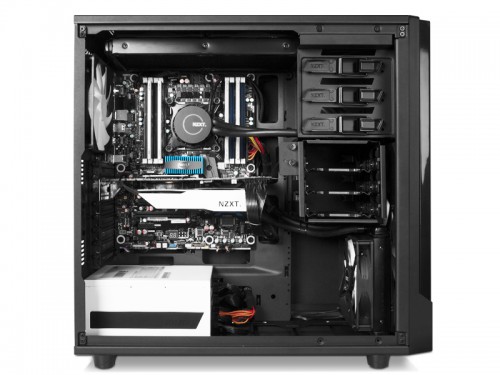

Design: NZXT’s Source 530 is a nice and clean looking case. The left side panel is partially windowed with no fan mounted. Build materials are standard – steel, plastic and mesh.
Cooling: The Source 530 supports up to 9 fans, however only 2 are included in the package.
- Front 2 x 140mm/120mm or 1 x 200mm
- Rear 1x140mm / 120mm (1x120mm included)
- Bottom 2 x 120mm
- Top 2 x 140mm or 3 x 120mm (1 x 120mm included)
- Interior 1 x 120mm/140mm
The case can fit water cooling radiators up to 360mm in size. It also has a native support for NZXT’s 140mm/280mm Kraken liquid cooler.
Size and Tech Spec: The Source 530 is a Full Tower case with ITX, Micro-ATX, ATX, EATX (322 x 272mm)
Motherboard support, has 8 expansion slots, 3 External 5.25″ slots, 6 Internal 3.25″/2.25″ and one 2.25″ slot behind the MB tray. On the front I/O panel there are one Audio and Mic jack + 2 x USB 3.0. Its dimensions are 235mm x 507mm x 510.5mm and weight of 9.2 kg.
Supported clearances are:
- CPU Cooler 282mm (with Pivot Fan)
- VGA Card 310mm (with Cage)/ 444mm (without Cage)
- Cable Management 26mm (Lowest Point)/ 34mm (Highest Point)

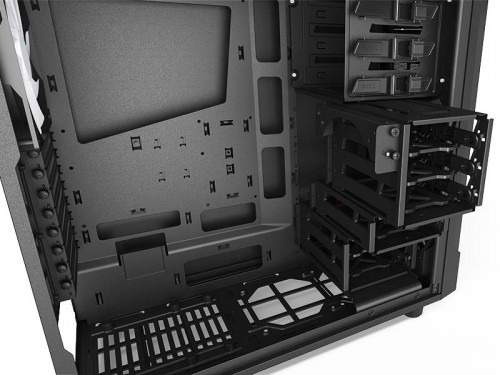

- This case also offers a fully modular HDD cage, that enables rich customization.

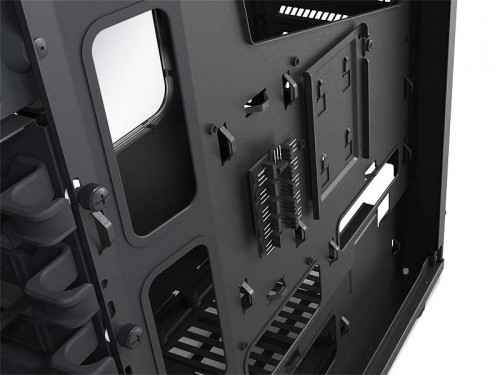

Behind the motherboard tray are located a fan hub and an SSD slot, which would definitely improve your cable management options.
