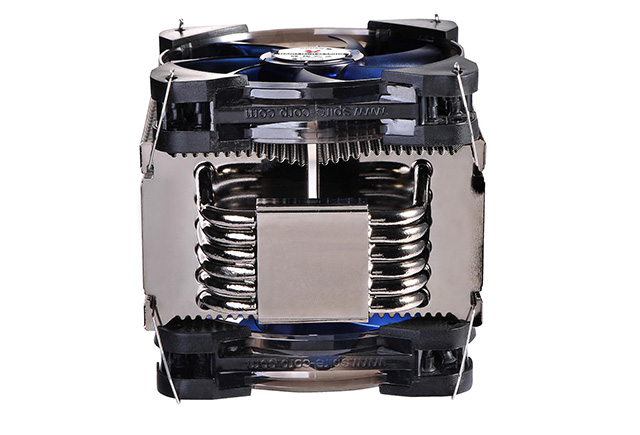

According to the official technical details the cooler is made of completely nickel plated copper contact plate and 6 x 6mm heatpipes transferring the heat from the processor to the 45 wide aluminum heat-sink fins. The heatsink of the cooler is with dimensions of 131 x 71 x 153mm and weight of 996 grams and is cooled by 2 x 120 x 25 mm fans working at 800˜2000 revolution per minute range with airflow level of 75.63 CFM, static pressure level of 2.96 mmH2O at noise level range of 10.0˜24.0 dBA.
X2 Eclipse IV is rated with 220W TDP and is compatible with all of the latest sockets including:
1) AMD AM2/AM3/AM3+/FM1/FM2
2) Intel LGA775 &LGA1155& LGA1156&LGA1366&2011
